Immersion Suit CONTRA 140 AS

The immersion suit Contra 140 AS is an integrated solution for a complete PPE system. Together with a SECUMAR lifejacket it combines a survival suit, fall arrest and flotation for all work in and around water. It therefore provides protection against hypothermia, drowning and falls from a height.

3.6 h Thermal protection

Toegelaten volgens
CE: PSA konform mit Richtlinie 89/686/EWG, baumuster- und typgeprüft.
SOLAS-Steuerrad: PSA konform mit der Schiffsausrüstungs- Richtlinie 96/98/EG und mit den SOLAS/ IMO Regeln für Rettungsmittel in der Seeschifffahrt.
Immersion Suit CONTRA 140 AS Handelaren Lijst
Wissen


Kenmerken en Design

Work around water is fraught with many different dangers – so, for the immersion Suit CONTRA 140 AS, SECUMAR has teamed up with the German fall-arrest specialist BORNACK to provide an integrated solution to providing PPE with a waterproof survival suit incorporating a safety harness suitable for working at heights on all ships and offshore.

The patented joining element becomes the attachment point and waterproof exit for the harness and can be connected to a fall-arrest system.
By wearing the harness on the inside of the garment, it does not create folds in the outer fabric that might cut off blood supply if held within the harness and air can move outside.

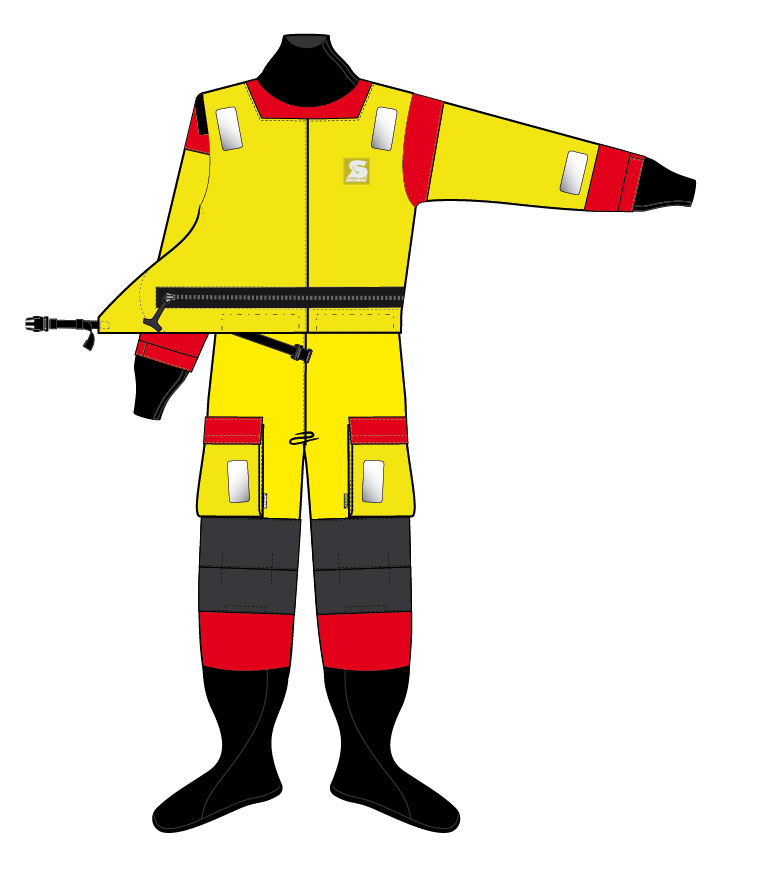

The suit also features a removable thermal liner and reinforced knees (with knee pad pockets and pads), seat and elbows. Entry is via a horizontal zip across the stomach.

However the main design feature is that it can be used with any suitable SECUMAR life jacket – in such a way as to be able to quickly check from the front that everything is in place and ready to hand.

The suit in itself has no inherent buoyancy system. We therefore recommend an additional SECUMAR lifejacket to DIN EN ISO 12402-2 or SOLAS regulations of a minimum of 275N buoyancy.

This Personal Protective Equipment can be used all together or separately.





Thermal protection and harness compatibility

Thermal Performance Class B in accordance with EN ISO 15027-1.
Water temperatures:

  • 0 °C 3,6 hours
  • 5 °C 5,0 hours
  • 10 °C 5,0 hours
  • 15 °C 9,7 hours

The insulation values above can be achieved with the following clothing:

  • Under-clothing:
    Underpants and shirt (short leg / arm, cotton), knee socks (cotton), underpants and shirt (long leg / arm, merino wool, 400 g/m²)
  • Over-clothing:
    Shirt (cotton), sweater (wool), trousers (cotton), boots (leather), neoprene hood and gloves



CONTRA 140 AS approved harnesses

  • BORNACK FS-4T (Offshore equipment)
    EC-type examination certificate No. P5 03 12 40506 006, TÜV Produkt Service GmbH (Zertifizierungsstelle CE 0123)

    • Size 1 (Part No. 311107-01)
    • Size 2 (Part No. 311107-02)
  • BORNACK FALLSTOCK ATTACK – Pro (Offshore equipment)
    EC-type examination certificate No. P5 04 07 40506 021, TÜV Produkt Service GmbH (Zertifizierungsstelle CE 0123)

    • Size 1 (Part No. 711134)
    • Size 2 (Part No. 711135)
  • BORNACK FALLSTOP AIR RESCUE (Type SEK and LR, Offshore equipment)
    EC-type examination certificate No. P5 05 06 40506 029, TÜV Produkt Service GmbH (Zertifizierungsstelle CE 0123)

    • Size 1 (Part No. 711040)
    • Size 2 (Part No. 711041)
